WEH CGA-540 Medical Quick Connect

  • Image 1

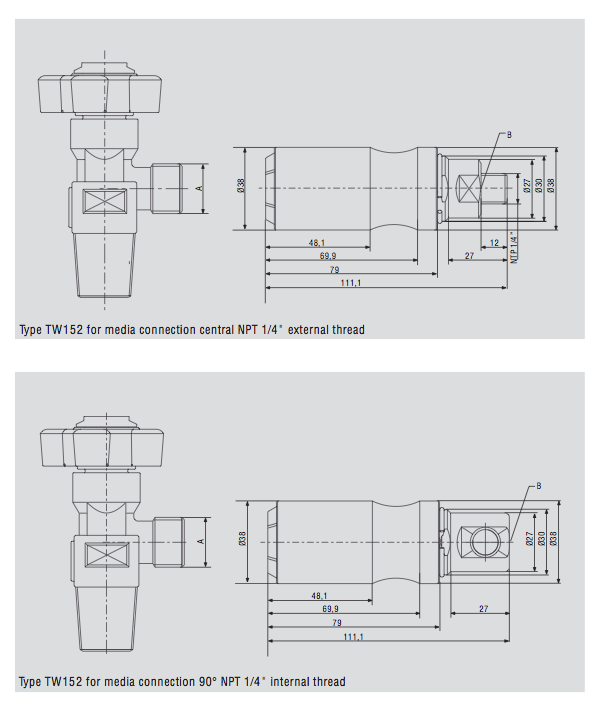

  • WEH TW152 Quick Connect - CGA-540
4.00 LBS
Calculated at checkout

Product Description

WEH Medical 540 gas connector is simple to use with a no twist, no turn approach to filling.  It has a safety locking mechanism that prevents accidental disconnection during filling.  Simply connect our product onto the valve and lock into place with a forward movement of the outer sleeve.  You are ready to fill the cylinder in a matter of seconds!  The Medical 540 is an O2 connector, specifically designed for self-contained 540 medical cylinder products and inverted rack-filling applications.  It has stainless steel and brass body components.  The Medical 540 has a pressure rating of 3600 psi, weighs 22 ounces and is cleaned for O2 service. Each Medical 540 is supplied with EPDM elastomer seals and the choice of a female 90 degree right-angle 1/4" NPT termination port, or a male straight 1/4"NPT termination port.  The elastomer compound used is based upon industry approval and performance characteristics for the application.



Medical 540

P/N: 521042540 (female supply inlet / termination port)
P/N: 521041540 (male supply inlet / termination port)

  • Stainless steel and brass body components
  • Sleeve Activation
  • Safety Locking Mechanism
  • EPDM Elastomer Seals
  • Female: 90 Degree Right Angle 1/4"NPT Termination Port
  • Male: Straight 1/4" NPT Termination Port
  • Designed specifically designed for filling requirements for self-contained, all-in-one, portable oxygen dispensing products
  • Field tested on: EZ-OX,    OXS,    Grab-N-GO,    E-Lite,   OxyToTe

  • The 540 Medical connector is not intended for use with the "Walk A Bout" from Airgas/Puritan Medical Products
    For "Walk A Bout" filling requirements, contact FasTest, for connector series TW102 designed specifically for the
     "Walk A Bout"
  • 3600 PSI. pressure rating
  • Weight 22 oz.
  • Cleaned for O2 service
